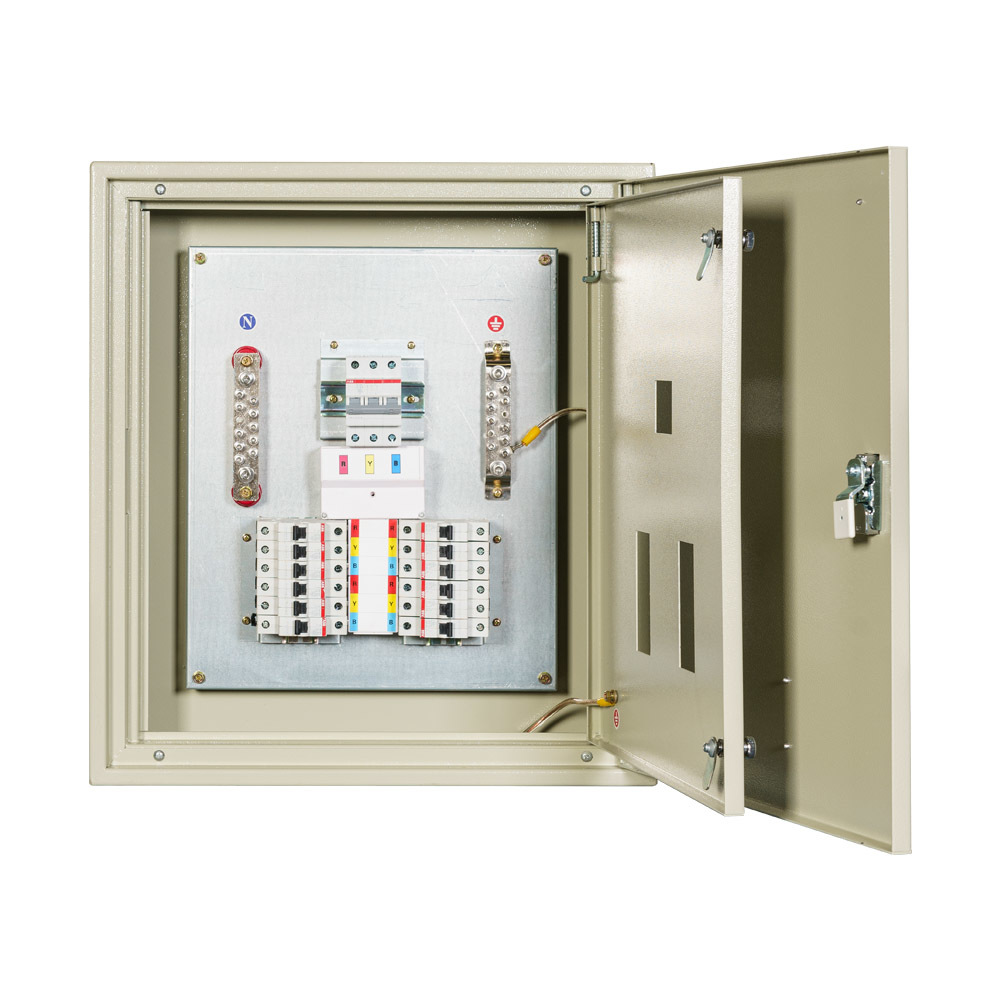

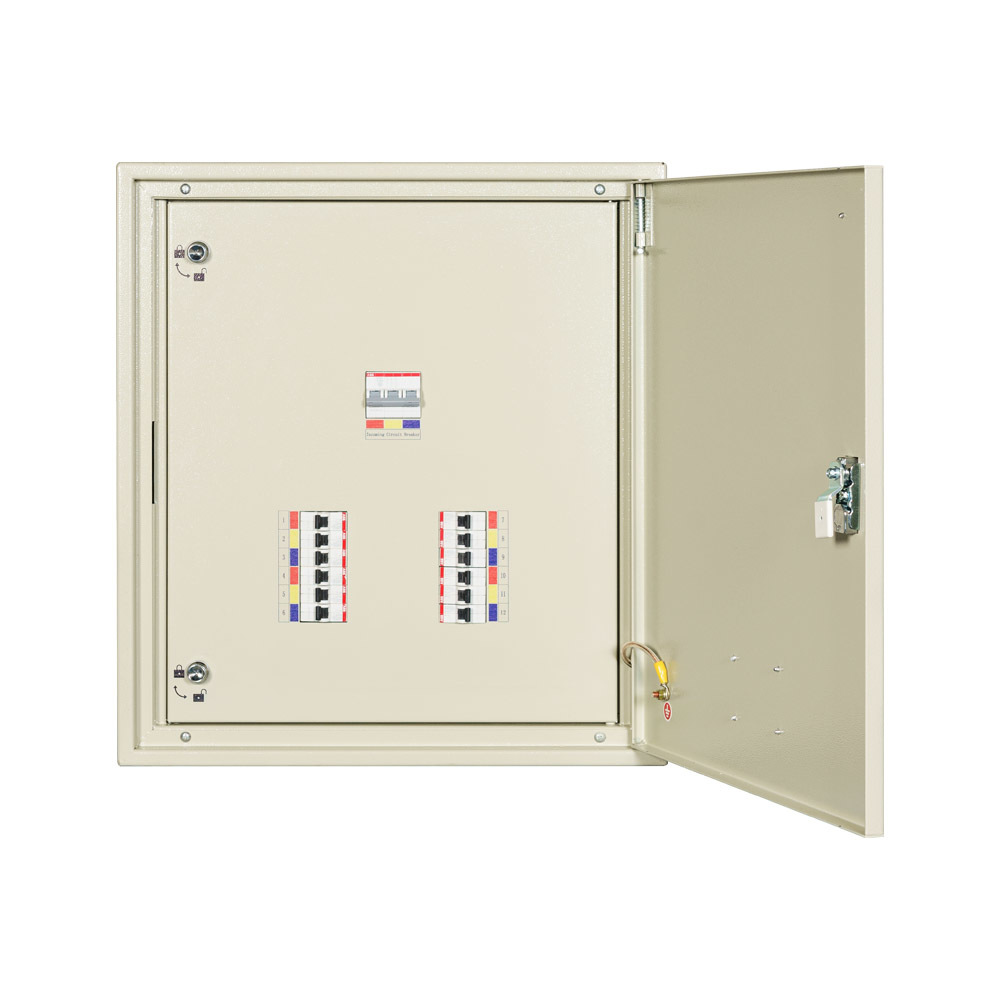

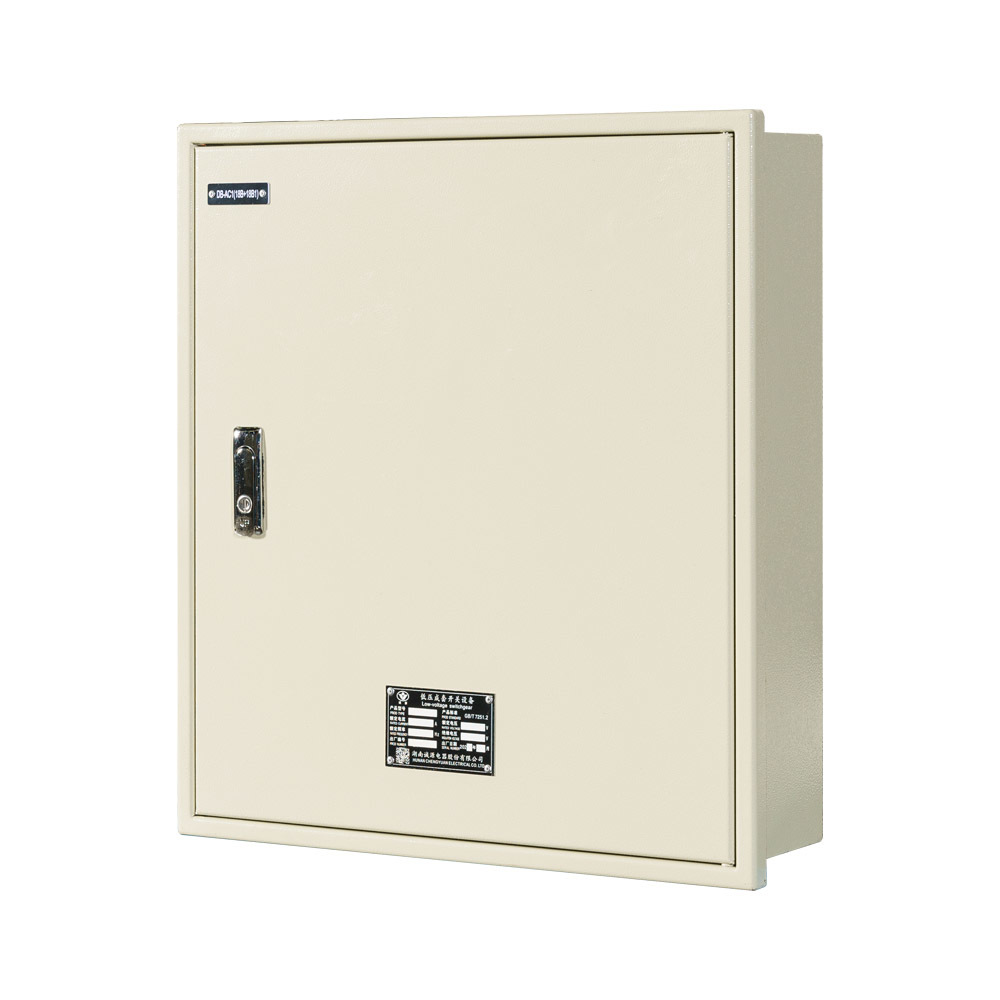

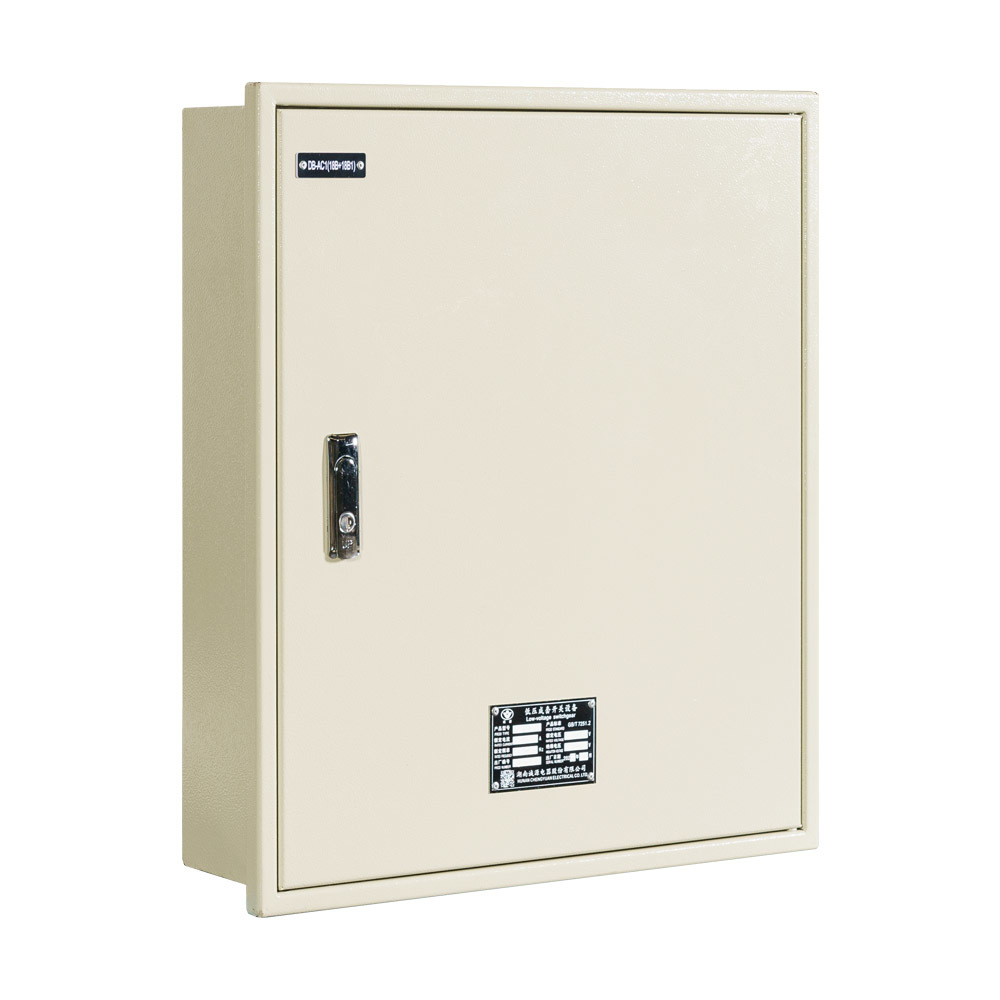

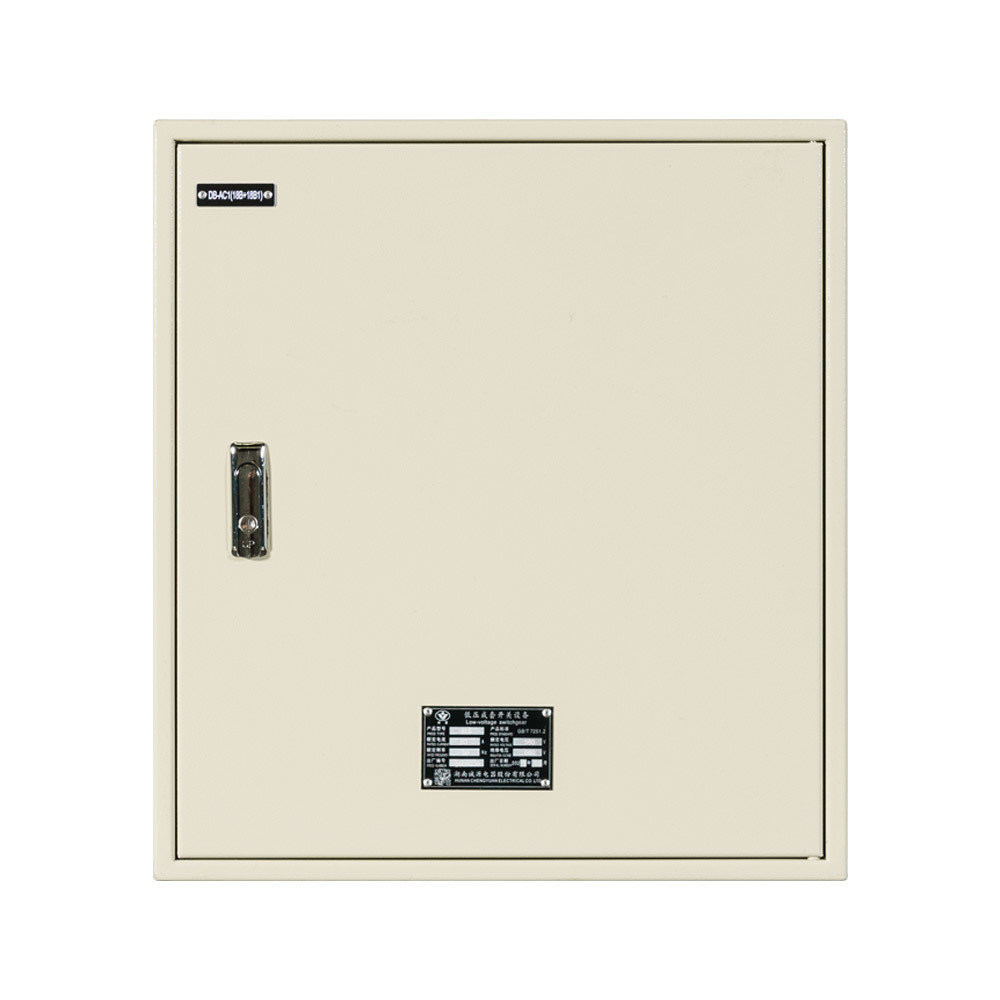

Distribution boxes (various specifications, customized on demand)
Category:
Email:
General description:
Product Description
Non-standard customized switchgear
——The "last mile" power distribution terminal tailored for complex environments
1. Product Positioning
Non-standard customized switchgear is an independently designed 0.4 kV complete set of equipment for on-site dimensions, protection levels, functional combinations, or aesthetic requirements that standard products cannot meet, covering various end-level power distribution scenarios such as lighting, power, fire protection, photovoltaic, charging piles, and explosion-proof.
2. Technical Framework (Adjustable as needed)
• Rated voltage: AC 220 / 380 / 400 V
• Rated insulation voltage: 660 V
• Rated current: 10 A – 630 A (maximum 1000 A for main switch)
• Rated short-time withstand: 4 kA – 30 kA / 1 s
• Impulse withstand: 6 – 8 kV
• Frequency: 50 Hz
• Protection level: Indoor IP30 – IP40, Outdoor IP45 – IP55, Explosion-proof Ex d IIC T6 Gb / IP66
• Enclosure material: 1.2 – 2 mm cold-rolled steel plate, 304/316L stainless steel, aluminum alloy or flame-retardant ABS non-metal
• Dimensions: Width 300 – 900 mm, Height 400 – 1250 mm, Depth 150 – 600 mm (fully customized according to the site)
3. Functional Modules (Free Combination)
| Module | Optional Configuration Example |
|---|---|
| Inlet | Molded case circuit breaker / Intelligent frame circuit breaker / Dual power ATS |
| Outlet | Miniature circuit breaker, leakage circuit breaker, AC contactor, thermal relay |
| Metering | Rail-mounted multi-function meter, prepaid IC card meter, 4G remote meter reading |
| Compensation | 30 – 150 kvar capacitor, SVG, APF interface |
| Control | PLC, inverter, time relay, fire linkage 24 V interface |
| Communication | RS-485, LoRa, 4G, Ethernet, fire two-bus |
| Explosion-proof | Ex d flameproof enclosure, increased safety terminal box, explosion-proof gland |
4. Design Process (7 days for drawings, 4 – 6 weeks for delivery)
① Requirements collection: Installation space, environmental level, number of circuits, load type, future expansion plan
② 3D modeling: SolidWorks / Eplan Pro Panel generates 3D drawings of enclosures, busbars, and wiring
③ Simulation verification: Temperature rise, short-circuit strength, EMC, seismic analysis
④ Process manufacturing: Laser cutting → CNC bending → Robot welding → Porcelain spraying ≥ 80 μm
⑤ Factory testing: Dielectric, grounding, functional simulation, IP rain test (outdoor) / explosion-proof pressure test
⑥ On-site service: Guide installation, wiring, debugging, provide completion drawings and QR code electronic manuals
5. Typical Scenarios
• Outdoor landscape / charging pile: IP55, 304 stainless steel, anti-condensation heater, lightning protection SPD
• Chemical explosion-proof: Ex d IIC T6, 316L stainless steel, explosion-proof gland + explosion-proof switch
• Data center floor: 600 mm wide × 400 mm deep × 1000 mm high, 19″ mounting angle, front and rear mesh doors for heat dissipation
• Hospital operating room: Dual power ATS + isolation transformer + leakage current monitoring < 2 mA
• Tunnel / subway: Seismic resistance 3 g, salt spray resistance 500 h, top inlet, bottom fire mud sealing
6. Ordering Instructions
Please provide at once:
• Single-line diagram and load list
• Installation environment (indoor/outdoor/explosion-proof/corrosion-resistant/temperature/altitude)
• Enclosure color (RAL color card), installation method (wall-mounted/floor-standing/pillar)
• Whether intelligent monitoring, fire linkage, prepaid or wireless communication is required
• Component brand preference (ABB, Schneider, Zhengtai, Delixi, etc.)
Through the combination of "modular skeleton + customized panel + flexible functional components", non-standard customized switchgear can complete design, manufacturing, debugging, and delivery within 4-6 weeks, ensuring a one-time acceptance rate ≥ 98%.
