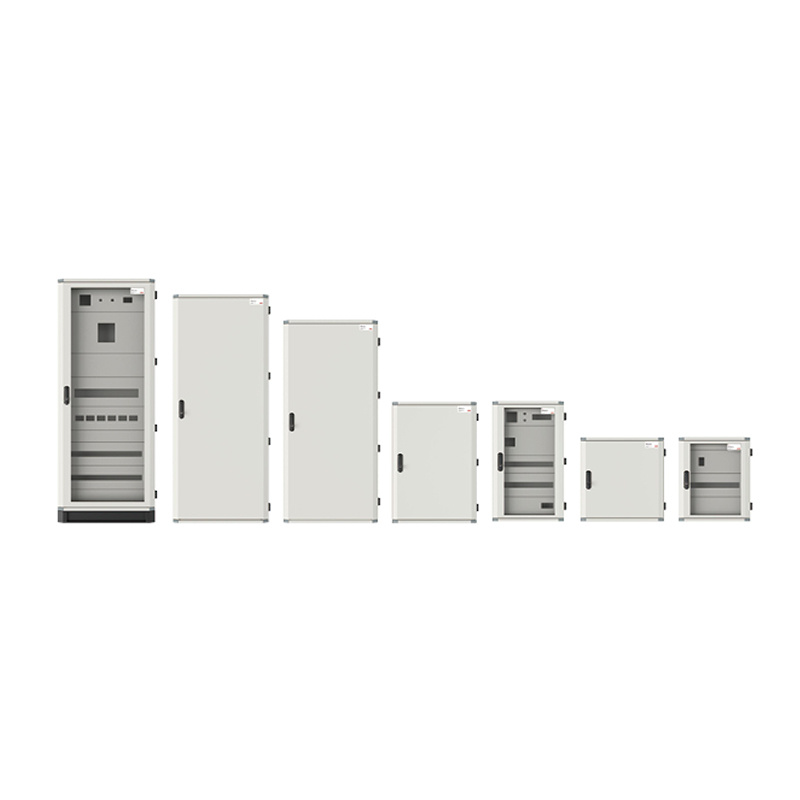

ABB MDrail-E low voltage distribution box/cabinet
Category:
Email:
General description:
Product Description
Structural Characteristics
MDrai-E is derived from ABB's global System pro E and other mature technologies, combined with localized application upgrades in China. It can be widely used in various fields such as public, commercial, and residential buildings, infrastructure, and industrial applications. Together with ABB components, it forms a complete distribution and control system solution that meets customer needs for safety, reliability, efficiency, flexibility, and aesthetics.
Simplicity and Beauty in Appearance
- Classic RAL7035 industrial gray spray coating
- The cabinet door features a beveled design, complemented by RAL7045 decorative corner edges and the ABB logo, highlighting industrial design elements.
- Flat handle lock, showcasing the high quality of the enclosure.
- Zinc alloy hinges ensure a 180° opening angle for the door panel while maintaining strength.
Efficient and Flexible Structure
- Provides various installation methods based on different application scenarios.
- Incorporates standardized design concepts with a sturdy structure that is impact-resistant; quick assembly kits can significantly reduce cabinet assembly and installation time, improving production efficiency.
- Incorporates modular design concepts, allowing flexible expansion of dimensions based on component types, installation methods, wiring methods, reserved space, etc.
System Safety and Reliability
- Low-voltage distribution systems tested by authoritative third-party complete type tests.
- ABB core components are easier to ensure cascading protection coordination and complete functions.
- Functional units have front panels that prevent direct contact with live parts, achieving protection level IP2XB.
- Innovative top cover design with a protection level of IPX1.
Typical Applications and Features
Digital Smart Solutions
MDrail-E collaborates with InSite pro M to form a digital energy efficiency management system applicable to distribution power, terminal distribution, and control. It can automatically monitor load levels, switch statuses, and temperatures, providing digital information on lightning protection status. In case of anomalies, it can quickly locate fault circuits to reduce power outage losses and ensure the safe operation of electrical equipment.
The system supports various communication methods such as Modbus RTU, Modbus TCP, Wifi, and 4G. It can intelligently interconnect with ABB Ability® EAM cloud platform and eEMS studio local energy efficiency platform while also supporting third-party monitoring platforms. Combined with digital operation and maintenance management, it can analyze energy consumption of water, electricity, gas, etc., for lean analysis of carbon emissions to achieve quality improvement and efficiency enhancement while reducing energy consumption and emissions, contributing to the creation of green, safe, and sustainable digital applications.
- Easy Installation
Digital bus and wireless technology save materials and construction costs.
- Expandable Upgrades
Device function modules are modularly combined for easy solution expansion and upgrades.
- Plug-and-Play
Reduces or avoids power outage losses; easy for project renovation and upgrades.
- Reliable Operation
Real-time monitoring protection of load, temperature, and voltage ensures stable and reliable power supply.
- Data Security
SNMP V3 and SSL certificates ensure secure data transmission.
- Simple Operation
Web services with a visual interface make settings and operations simple.
